W10M 1.5A 1000V Full Wave Bridge Rectifier
Original price was: ₹14.00.₹11.00Current price is: ₹11.00.
SKU : 32-ERDOD002STOCK: 10 (WooHoo!) Available
Quick Review:
- Low cost
- This series is UL recognized under component index
- High forward surge current capability
- Ideal for printed circuit board
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Bulk Quantity? Let’s Talk!
Availability:
10 in stock
10 in stock
106 in stock
370 in stock

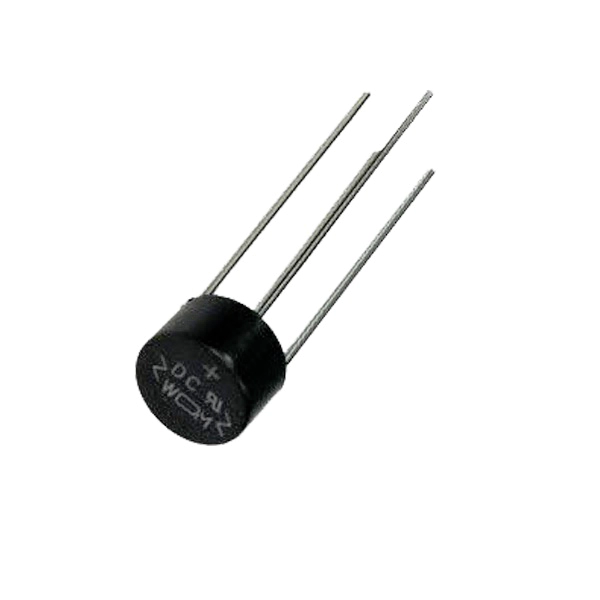

The 1.5 Amp Full Wave Bridge Rectifier (W10M) is a single phase Bridge Rectifier. Voltage Range is 50 to 1000 Volts and Current is 1.5 Amperes.
Technical Specification:
- Low cost
- This series is UL recognized under component index
- High forward surge current capability
- Ideal for printed circuit board
- High temperature soldering guaranteed: 260 oC/10 second, 0.375”(9.5 mm) lead length at 5 lbs. (2.3 kg) tension.
Mechanical Data:-
- Case: Molded plastic body
- Terminal: Lead solderable per MIL-STD-202 E method 208 C.
- Polarity: Polarity symbols molded on case
- Mounting position: Any
- Weight: 0.042 ounce, 1.2 grams
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Maximum Repetitive Peak Reverse Voltage | 100 | V |
| VRMS | Maximum RMS Voltage | 70 | V |
| VDC | Maximum DC Blocking Voltage | 100 | V |
| I(AV) | Maximum Average Forward Rectified Output Curren | 1.5 | A |
| IFSM | Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | 50 | A |
| VF | Maximum Instantaneous Forward Voltage at 1.0A | 1 | V |
| CJ | Typical Junction Capacitance | 15 | PF |
| RθJA | Typical Thermal Resistance | 40 | ℃/W |
| TJ | Operating Temperature Range | -55 to +125 | ℃ |
| TSTG | Storage Temperature Range | 55 to +150 | ℃ |
Package Includes:
- 1 Piece-W10M 1.5A 1000V Full Wave Bridge Rectifier
| Weight | 250 g |
|---|---|
| Dimensions | 144 × 74 × 40 mm |
