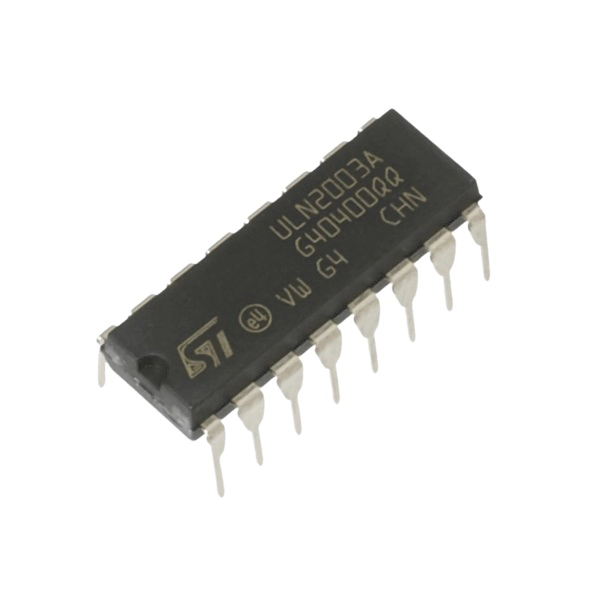

ULN2003 7 Darlington Transistor Arrays IC DIP-16 Package
Original price was: ₹15.00.₹12.00Current price is: ₹12.00.
SKU : 33-ERICS004STOCK: 4 (WooHoo!) Available
Quick Review:
- Package Type: DIP-16
- Output Current (Per Channel): 500mA (max)
- Output Voltage: Up to 50V
- Input Voltage: Compatible with TTL and CMOS logic levels
- Built-in Diodes: For inductive load protection
- Operating Temperature Range: -20°C to 85°C
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
4 in stock
4 in stock
The ULN2003 is a high-voltage, high-current Darlington transistor array IC, featuring seven NPN Darlington pairs in a single DIP-16 package. Each Darlington pair can handle up to 500mA, making this IC perfect for driving loads like relays, stepper motors, LED displays, and solenoids. With built-in flyback diodes for inductive load protection, the ULN2003 simplifies your circuit design and ensures reliable performance in various applications.
Key Features:
- Seven Darlington Transistor Arrays: Simplifies driving multiple high-power loads from a low-power control signal.
- High Output Current: Each output can sink up to 500mA, suitable for controlling heavy loads.
- High Voltage Capability: Supports up to 50V on the output side, making it ideal for industrial applications.
- Built-in Flyback Diodes: Protects against voltage spikes when driving inductive loads such as motors and relays.
- Standard DIP-16 Package: Easy integration and prototyping with breadboards and PCBs.
Technical Specifications:
- Package Type: DIP-16
- Output Current (Per Channel): 500mA (max)
- Output Voltage: Up to 50V
- Input Voltage: Compatible with TTL and CMOS logic levels
- Built-in Diodes: For inductive load protection
- Operating Temperature Range: -20°C to 85°C
Applications:
- Relay drivers
- Stepper motor controllers
- LED and lamp drivers
- Solenoid actuators
- Logic buffers
- Display drivers
- Industrial control circuits
Why Choose the ULN2003 IC? The ULN2003 is a versatile and robust component for driving high-current loads using low-power control signals. Its compact DIP-16 package and integrated flyback diodes make it easy to use in a wide range of projects, from hobbyist electronics to complex industrial systems. Whether you’re controlling motors, relays, or LED arrays, the ULN2003 delivers efficient and reliable performance.
Package Includes:
- 1 Piece- ULN2003 7 Darlington Transistor Arrays IC DIP-16 Package
| Weight | 15 g |
|---|
