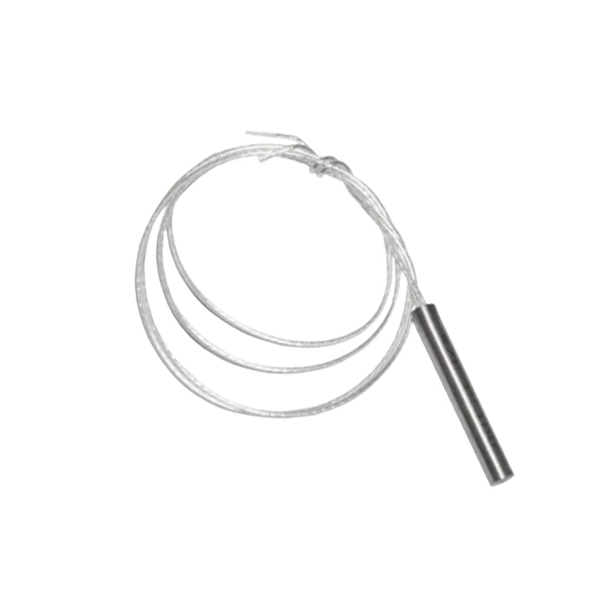

PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe Temperature Sensor

For precision temperature sensing, nothing beats a PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe Temperature Sensor. Resistance temperature detectors (RTDs) are temperature sensors that contain a resistor that changes resistance value as its temperature changes, basically a kind of thermistor.

In this sensor, the resistor is actually a small strip of Platinum with a resistance of 1000 ohms at 0°C, thus the name PT1000. Compared to most NTC/PTC thermistors, the PT type of RTD is much most stable and precise (but also more expensive). PT1000’s is useful to measure temperature in laboratory and industrial processes; and have developed a reputation for accuracy (better than thermocouples), repeatability, and stability.

This high-temperature PT1000 sensor is equipped with a 316L stainless steel shield (try saying that five times fast!) that is good for up to 550°C.

Technical Features:

• Model number: FTARP05 series.
• Mounting form Polish rod probe
• The Probe material: Stainless steel.
• Probe diameter: 4mm.
• Length of the probe: 30mm.
• Cabel material Silver plated copper (not insulated), PTFE Silver plated copper (Waterproof, insulated).
• Accuracy ±(0.3°C+0.5%|t|).
• Thermal response time: <0.5 sec.
• Based on resistance measurement principles.
• Resistor material is Platinum with a value of 1000 ohm at temperature 0°C.
• Platinum has a positive resistance-temperature factor; resistance increases with rising temperature.
• Resistance variation is a function of temperature: 3.85Ω/°C nominal.
• High accuracy and stability compared to thermocouples, silicon-based temperature sensors, or thermistors.

Package Includes:

• 1 Piece–PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe Temperature Sensor
