OR Gate Implementation using Diode – Paper Circuit Project

OR Gate Implementation using Diode – Paper Circuit Project

Original price was: ₹299.00.Current price is: ₹199.00.

SKU : ERSPC010

STOCK: Available on Backorder

Quick Review:

  • Demonstrates OR logic gate operation
  • Uses diodes instead of ICs
  • Paper circuit construction using copper tape
  • Visual LED output indication
  • Beginner-friendly and educational

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Bulk Quantity? Let’s Talk!

Availability:

OR Gate Implementation using Diode – Paper Circuit Project
This item: OR Gate Implementation using Diode – Paper Circuit Project
Original price was: ₹299.00.Current price is: ₹199.00.
Original price was: ₹299.00.Current price is: ₹199.00.
Fire Detection Alarm Using IR Sensor – Paper Circuit Project
1 × Fire Detection Alarm Using IR Sensor – Paper Circuit Project
Original price was: ₹299.00.Current price is: ₹199.00.
Add to Wishlist

OR Gate Implementation using Diode – Paper Circuit Project

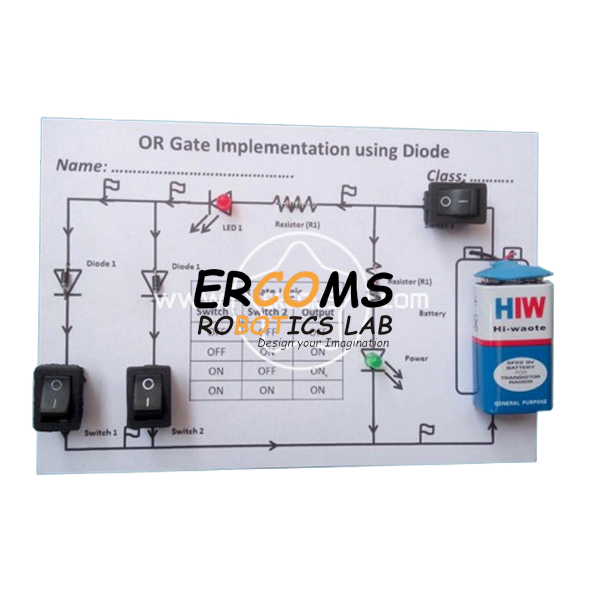

Abstract: The OR Gate Implementation using Diodes is a simple digital electronics model designed using paper circuit technology to demonstrate the basic working of an OR logic gate. In this project, diodes are used to perform logical OR operation without using any integrated circuits.

The circuit accepts two input signals (A and B). When either one or both inputs are HIGH, the diode corresponding to that input conducts and the output becomes HIGH. The output remains LOW only when both inputs are LOW. An LED indicator is used at the output to visually display the logic result.

By constructing the circuit on paper using copper tape instead of a PCB, the project becomes low-cost, safe, solder-free, and easy to understand. This model is ideal for learning basic digital logic concepts, diode applications, and introductory electronics.

Package Includes:

  • 1 Piece –OR Gate Implementation using Diode (Working Project Without Battery)

Note:

  1. Project Image only Illustration Purpose. The project may be the same or maybe an improved Version.
  2. We only provide batteries when students pick up their projects from our lab. Batteries aren’t included in shipped orders because our shipping partner doesn’t allow them.

Weight 200 g
Dimensions 20 × 15 × 5 mm
