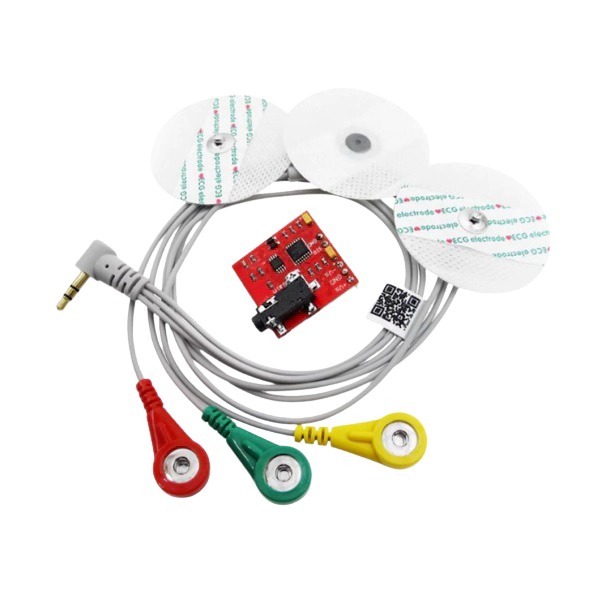

EMG Muscle Sensor Module V3.0 with Cable And Electrodes

EMG Muscle Sensor Module V3.0 with Cable And Electrodes

Original price was: ₹1,999.00.Current price is: ₹1,649.00.

SKU : 64-ERPHB004

STOCK: (Oh! no) Out of stock

Quick Review:

  • Diameter of Electrode Pad: 52 mm
  • Cable Length: 2 feet
  • Weight: 30gm.
  • Improved adjustable gain (more rugged)
  • Onboard port for new cables Connects to the board straight out of the box

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

Out of stock

Select Below Products to Add Together:
EMG Muscle Sensor Module V3.0 with Cable And Electrodes
This item: EMG Muscle Sensor Module V3.0 with Cable And Electrodes

Out of stock

Original price was: ₹1,999.00.Current price is: ₹1,649.00.
Original price was: ₹1,999.00.Current price is: ₹1,649.00.
MAX30100 Pulse Oximeter Heart Rate Sensor Module
MAX30100 Pulse Oximeter Heart Rate Sensor Module

Out of stock

-
+
Original price was: ₹275.00.Current price is: ₹258.00.

EMG Muscle Sensor Module V3.0 With Cable And Electrodes will measure the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. Power supply voltage: min. +-3.5V.

By detecting the electromyogram (EMG), measuring muscle activity has traditionally been used in medical research, however with shrinking but more powerful microcontrollers and integrated circuits advent EMG power Road and sensors can be used for various control systems.

This Muscle Sensor v3 measures, filters, rectifies, and amplifies the electrical activity of a muscle and produces an analogue output signal that can easily be read by a microcontroller, enabling novel, muscle-controlled interfaces for your projects.

Technical Specifications:

  • Diameter of Electrode Pad: 52 mm
  • Cable Length: 2 feet
  • Weight: 30gm.
  • Improved adjustable gain (more rugged)
  • Onboard port for new cables Connects to the board straight out of the box
  • Power Supply : Normally ±9V dual power supply, minimum voltage is ±3.5V
  • Supported with Arduino, Breadboard mountable
Wiring Instructions:-
  • To use this sensor, the user must have three electrodes connected to the subject’s body.
  • The reference electrode should be placed on an inactive section of the body, such as the bony portion of the elbow, shin or forearm. This electrode should be connected to the black or brown cable.
  • The two other electrodes should be placed along the muscle selected to be measured. The second electrode should be placed along the mid-length of the muscle; this electrode should be connected to the red cable.
  • The last electrode should be placed at the end of the muscle and connected to the blue cable.
  • Finally, connect pin SIG to an analogue input pin of your microcontroller and the GND pin to the ground pin on your microcontroller.

Package Includes:

  • 1 Piece- Sensor cable.
  • 3 Piece- Electrode Pads.
  • 1 Piece-EMG Muscle Sensor Module

Shipping

We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.

For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.

We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.

This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.

We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.

Warranty

This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.

What voids the warranty?

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.

Other Info

  • Country of origin: China
  • Packer/ Importer: Ercoms Robotics Lab
