Dynamic Wireless Electric Vehicle Charging System

Abstract: Electric vehicles have now hit the road worldwide and are slowly growing in numbers. Apart from environmental benefits electric vehicles have also proven helpful in reducing cost of travel by replacing fuel by electricity which is way cheaper. However electric vehicles have 2 major disadvantages:

• Long charging time – 1-3 hours required for charging
• Non availability of power for charging stations in off city and remote areas.

Well here we develop an EV charging system that solves both these problems with a unique innovative solution. This EV charging system delivers following benefits:

• Wireless charging of vehicles without any wires
• No need to stop for charging, vehicle charges while moving
• Solar power for keeping the charging system going
• No external power supply needed
• Coils integrated in road to avoid wear and tear

The Tranformer is used to power the battery through a charge controller. The battery is charged and stores dc power. The DC power now needs to be converted to AC for transmission. For this purpose we here use a transformer.

The power is converted to AC using transformer and the regulated using regulator circuitry. This power is now used to power the copper coils that are used for wireless energy transmission. A copper coil is also mounted underneath the electric vehicle. When the vehicle is driven over the coils energy is transmitted from the transmitter coil to ev coil. Please note the energy is still DC current that is induced into this coil. Now we convert this to DC again so that it can be used t charge the EV battery.

Applications

• Highways and Expressways
• Smart Cities
• Remote and Off-Grid Areas
• Public Transportation
• Industrial and Commercial Campuses
• Logistics and Delivery Fleets
• Parking Lots and Toll Plazas
• Emergency and Service Vehicles
• Research and Development
• Environmental Sustainability Projects

Shipping Time :> Processing Time—>Demo Class —> Shipped —> Transit Time 3 to 7 Day–> Delivery

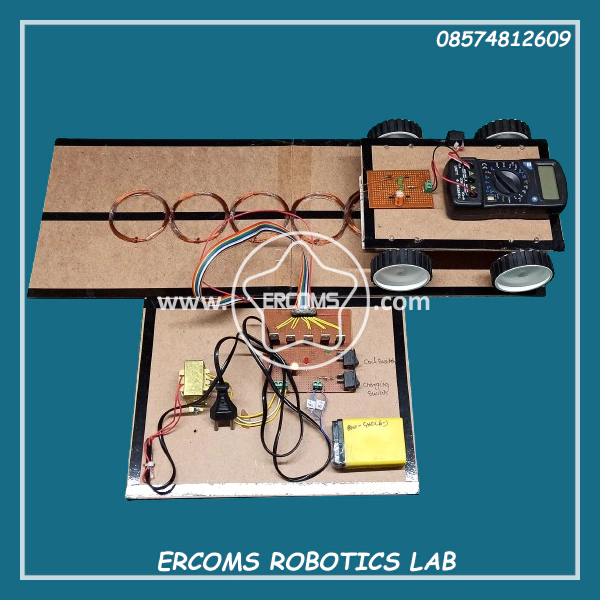

**Project Image only Illustration Purpose. The project may be the same or maybe an improved Version.**
