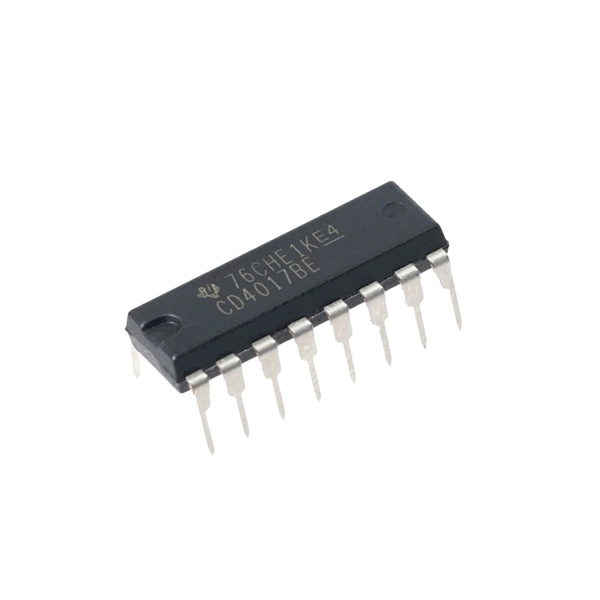

CD4017 Decade Counter IC DIP-16 Package
Original price was: ₹30.00.₹25.00Current price is: ₹25.00.
SKU : 33-ERICS027STOCK: (Oh! no) Out of stock
Quick Review:
- Package Type: DIP-16
- Supply Voltage Range: 3V to 15V
- Output Current: 10mA per output (max)
- Operating Temperature Range: -55°C to 125°C
- Clock Frequency: Up to 5MHz (typical)
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
Out of stock
The CD4017 is a versatile decade counter IC, packaged in a standard DIP-16 format, that can count from 0 to 10 (decade counting) in response to a clock input. This CMOS IC features 10 decoded outputs, each capable of driving a variety of loads, making it ideal for applications such as digital counters, frequency dividers, and event counters. The CD4017 operates over a wide voltage range, ensuring compatibility with a variety of electronic systems.
Key Features:
- Decade Counting: Counts from 0 to 10, providing 10 output states.
- 10 Decoded Outputs: Each output can be used to control devices such as LEDs, relays, or other logic circuits.
- Wide Supply Voltage Range: Operates between 3V and 15V, compatible with many logic families.
- Easy Integration: DIP-16 package allows for easy prototyping and breadboarding.
- Asynchronous Reset: Reset functionality allows for easy control of counting sequences.
- Low Power Consumption: CMOS technology ensures minimal power usage, making it suitable for battery-powered applications.
Technical Specifications:
Package Type: DIP-16
- Supply Voltage Range: 3V to 15V
- Output Current: 10mA per output (max)
- Operating Temperature Range: -55°C to 125°C
- Clock Frequency: Up to 5MHz (typical)
Applications:
- Digital counting applications
- Frequency dividers
- LED chasers and light displays
- Event counters
- Industrial automation
- Robotics
- Timer circuits
Why Choose the CD4017 Decade Counter IC? The CD4017 is a reliable and flexible solution for counting applications in both hobbyist and professional projects. Its ease of use, coupled with its capability to drive multiple outputs, makes it an essential component for digital electronics. Whether you’re creating a simple counter or a complex light sequence, the CD4017 provides the performance and reliability needed for effective design.
Package Includes:
- 1 Piece- CD4017 Decade Counter IC DIP-16 Package
| Weight | 15 g |
|---|
