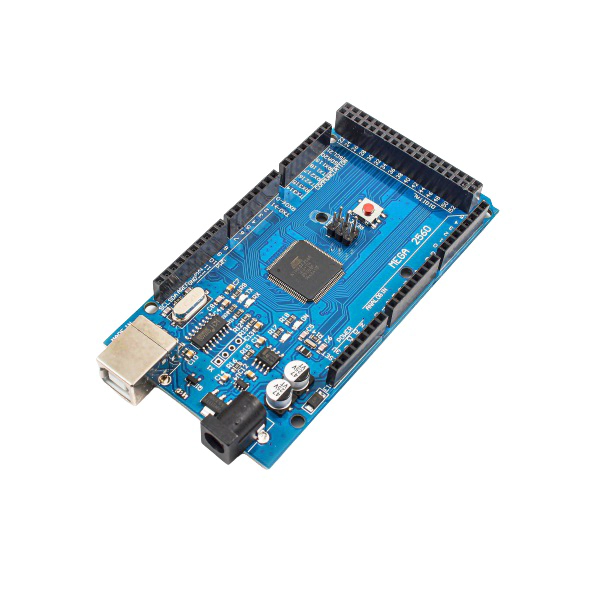

Arduino Mega 2560 R3 Improved Version CH340G Board (Without Cable)

Original price was: ₹1,349.00.Current price is: ₹1,189.00.

Quick Review:

Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by boot loader

Shipping: Usually delivered in 3-7 days.

Brand New || Best Quality || Skype and Video Support Available.

Need in Quantity? Let’s Talk!

Availability:

1 in stock

Select Below Products to Add Together:

Arduino Mega 2560 R3 Improved Version CH340G Board (Without Cable)

This item: Arduino Mega 2560 R3 Improved Version CH340G Board (Without Cable)

1 in stock

Arduino Uno R3 Dip Board (Without Cable)

4 in stock

Arduino Due R3 Board - Compatible Model

1 in stock

Arduino Pro Mini Atmega328p (Without Cable)

16 in stock

ATMEGA16U2 Arduino Mega 2560 R3 Improved Version CH340G Board is an open-source microcontroller board which is based on Atmega 2560 microcontroller. The growth environment of this board executes the processing or wiring language. These boards have recharged the automation industry with their simple to utilize platform wherever everybody with small otherwise no technical backdrop can start by discovering some necessary skills to program as well as run the Arduino board. These boards are used to extend separate interactive objects otherwise we can connect to software on your PC like MaxMSP, Processing, and Flash.

The Arduino Mega is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs),16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator,a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

Key Features

High I/O Count: Provides 54 digital I/O pins and 16 analog input pins, making it suitable for projects requiring a large number of sensors or actuators.
Versatile Connectivity: Supports USB connectivity for programming and serial communication with the computer. The CH340G chip provides the USB-to-Serial conversion.
Expandability: Compatible with a wide range of Arduino shields and modules designed for the Mega series, allowing for easy integration of additional functionalities like sensors, displays, and communication modules.
Extended Memory: Offers ample program memory (256 KB flash) and RAM (8 KB SRAM), suitable for complex applications and data storage needs.

Usage Considerations

Driver Installation: Ensure the CH340G drivers are installed on your computer before attempting to upload sketches or communicate with the board via USB.
Power Requirements: Use an appropriate power supply (7-12V DC) to ensure stable operation, especially when driving multiple peripherals or motors.
Compatibility: Verify compatibility of libraries and shields with the Mega 2560 board to ensure proper functionality, especially if migrating from other Arduino boards.
Programming: Use the Arduino IDE or other compatible IDEs to write and upload sketches to the board. Select “Arduino Mega 2560” from the board menu in the IDE.

Example Projects

Robotics: Control multiple motors and sensors for robotic applications.
Automation: Build automated systems for home or industrial use.
Data Logging: Create data logging systems with multiple sensors.
Prototyping: Rapidly prototype and develop complex electronic systems due to the extensive I/O capabilities.

Getting Started

Download Arduino IDE: Install the Arduino IDE from the Arduino website.
Install CH340G Drivers: Download and install the CH340G drivers for your operating system if necessary.
Connect the Board: Use a USB cable to connect the Arduino Mega 2560 to your computer.
Select Board and Port: In the Arduino IDE, select “Arduino Mega 2560” from the Tools > Board menu. Choose the appropriate port from the Tools > Port menu.
Upload Sketch: Write your Arduino sketch and upload it to the board using the upload button in the Arduino IDE.

The Arduino Mega 2560 R3 with the CH340G chip is a robust and versatile development board suitable for a wide range of projects requiring extensive I/O capabilities and connectivity options.

Technical Specifications:

Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by boot loader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
USB Host Chip: MAX3421E
Model: Clone
Length:101.98mm/4.01in
Width:53.63mm/2.11in
Height:15.29mm/0.60in

Package Includes:

1 Piece- Arduino Mega 2560 R3 Improved Version CH340G Board (Without Cable)

Weight	37 g
Dimensions	110 × 55 × 14 mm
