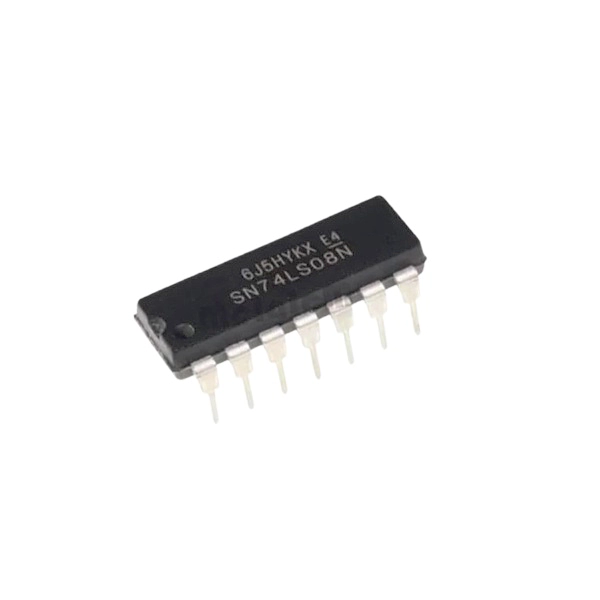

74LS08 Quadruple 2-Input Positive AND Gate IC (7408) DIP-14 Package

These devices contain four independent 2-input AND gates. The SN5408,SN54LS08,and SN54S08 are Characterized for operation over the full military Temperture range of -55°C to 125°C.The SN7408,SN74LS08 and SN74S08 are characterized for operation from 0°C to 70°C.

Pin Configuration:-

• Pin 1 (A1): This is the first input pin of the 1st AND logic gate within IC
• Pin2 (B1): This is the second input pin for the 1st AND logic gate within IC.
• Pin 3 (Y1): The first AND gate output can be obtained at this pin.
• Pin 4 (A2): This is the 1st input pin of the 2nd AND gate within this IC.
• Pin 5 (B2): This pin provides the second input toward the 2nd AND gate within this IC.
• Pin 6 (Y2): This pin is used to get the o/p of the 2nd AND gate from this IC.
• Pin 7 (GND): This is a GND pin; used as a common GND through other communication devices using IC & Power Supply.
• Pin 8 (Y3): This pin is used to get the output of the 3rd AND gate from this IC.
• Pin 9 (A3): This pin is used to provide the 1st input to the 3rd AND gate toward the IC.
• Pin 10 (B3): This pin is used to provide the 2nd input toward the 3rd AND logic gate toward the IC.
• Pin 11(Y4): This pin is used to get the output of the 4th AND gate from this IC.
• Pin 12 (A4): This pin is used as the 1st input pin of the 4th AND gate.
• Pin 13 (B4): This pin is used as the 2nd input pin of the 4th AND gate
• Pin 14 (VCC): At this pin, the power supply can be provided to make the IC active.

Technical Specifications:

• The operating speed of IC 74LS08 is must fast
• This IC has less power consumption
• It has Quadruple 2-Input AND Gate features
• It is available in several packages like SOP, PDIP & SOIC
• It is very simple to operate
• It is much cheaper
• The output of this IC is TTL so that it can operate with microcontrollers & devices
• A single power supply can activate all logic gates within the IC
• An AND gate is used without affecting other gates
• The maximum current provided by this IC is 8mA
• The rise & fall time of this IC is 74LS08
• The operating temperature of this IC ranges from 4.75V to 5.25V
• The recommended voltage of this IC must be 5V however this IC holds up to 7V max.
• The operating temperature ranges from 0 – 70 degrees however it has the capability to store -65 to 150 degrees of temperature

Applications:-

• This IC is mainly to achieve general-purpose AND gate logic.
• It is used in different devices of servers, ALU, digital electronics, memory units, networking devices
• It is used in several digital systems.
• This IC is mainly used wherever the logic operation of AND gate is required. This IC includes 4 AND gates where a single gate or all logic gates are used simultaneously.
• This IC is also very useful where AND gate with high-speed operation is necessary.
• These logic gates are designed with Schottky transistors for making the logic gate switching delays less. So this IC can be utilized for AND operations with high speed.
• This AND gate IC is very cheap used for AND gate logic operation. It is very famous & accessible everywhere.

Package Includes:

• 1 Piece- 74LS08 Quadruple 2-Input Positive AND Gate IC (7408) DIP-14 Package
