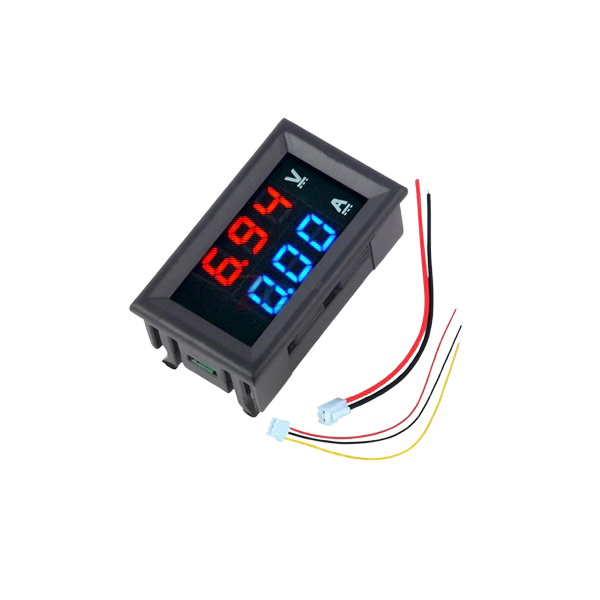

0.28″ Digital Voltmeter (0-100V) and Ammeter (10 A) Dual LED Voltage Current Measurement Module
Original price was: ₹139.00.₹99.00Current price is: ₹99.00.
SKU : 65-ERVLT006STOCK: (Oh! no) Out of stock
Quick Review:
- Model Type: Ammeter, Voltmeter
- Voltage Rating: 4 to 28VDC
- Display: 0.28″ Two-color blue and red
- Working Current (mA): 20mA
- Operating Temperature (°C): -10 to 65° c
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
Out of stock
This is Dual Led 0.28” Display for DC0-100V 10A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 50A.
So a digital voltage is a voltage that can be in only 1 of 2 states. The voltage can either be entirely off or LOW at 0V. Or the voltage can be entirely ON or HIGH at the peak voltage. Let’s say the voltage of the signal goes to 5V. This means the digital voltage can either be 5V or 0V.
The working of a digital voltmeter is converting an analog signal into a train of pulses. The number of pulses is proportional to the input signal. Therefore, a digital voltmeter can be made by using any A/D conversion method. Initially, a voltage signal is introduced to the pulse generator.
- Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail).
- Require external power supply; with reversed connection protection.
- The ground wire of the testing end and power supply terminal is the same wire; a quick refresh of about 500 MS/time.
- With a built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products’ voltage current measurement.
Technical Specifications:
- Model Type: Ammeter, Voltmeter
- Voltage Rating: 4 to 28VDC
- Display: 0.28″ Two-color blue and red
- Working Current (mA): 20mA
- Operating Temperature (°C): -10 to 65° c
- Working Pressure: 80 to 106 kPa.
- Operating humidity: 10 to 80% (non-condensing)
- Accuracy: 0.01
- Color: Like the picture show
- Rapid response recovery characteristics.
- It Has a long life and reliable stability.
- High precision, four digital displays.
- Measure voltage: DC 0 ~ 100V
- Operating voltage: DC 4.5 ~ 30V
- Minimum resolution(V): 0.1V
- Minimum resolution(A): 10A
- Operating current: 20mA
- Display: three 0.28″ LED digital tube
- Display color: Red and Blue (two-color display)
- Mounting cutout: 45.5 x 26.5mm
- Refresh rate: about 500mS / times
Package Includes:
- 1 Piece– 0.28″ Digital Voltmeter (0-100V) and Ammeter (10 A) Dual LED Voltage Current Measurement Module
| Weight | 25 g |
|---|---|
| Dimensions | 48 × 25 × 20 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
