SP Racing F3 ACRO Flight Controller
The SP Racing F3 ACRO is a high-performance flight controller designed for FPV racing and acrobatic multirotor applications. It packs advanced hardware and rich I/O into a compact, lightweight 36×36 mm form-factor (30.5 mm mounting holes) making it ideal for racing quads where every gram and millimetre counts.
-
Next-generation STM32 F3 processor (ARM Cortex-M4) with hardware floating point unit (FPU) for faster, more efficient flight calculations.
-
Uses the reliable MPU6050 accelerometer/gyro sensor (ACRO version) for stable attitude sensing.
-
Full support for OneShot ESC protocol—enabling sharper response, tighter PID tuning and enhanced racing performance.
-
Extensive I/O — supports receivers like SBUS, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM without external inverters.
-

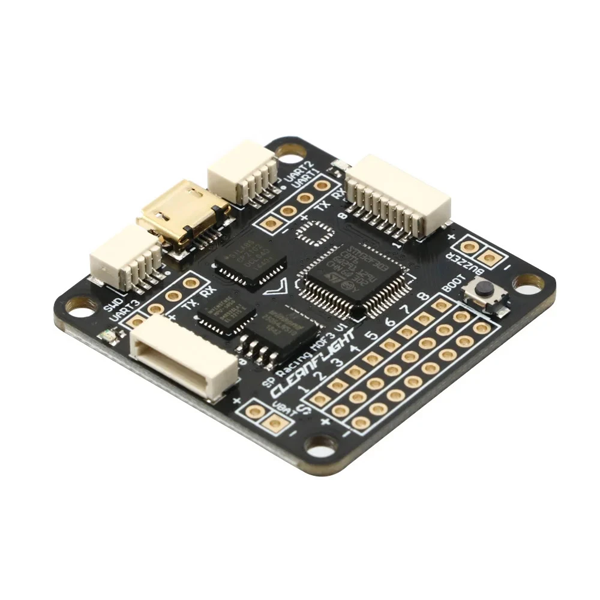

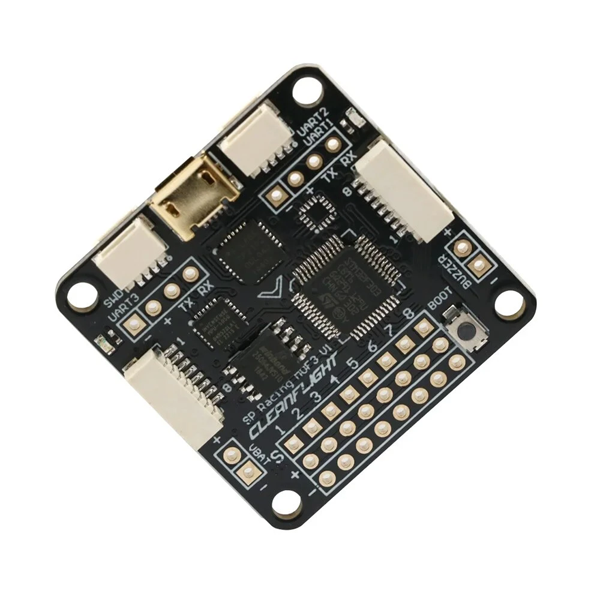

On-board connectors and solder-pads:
-
4×4-pin JST-SH sockets (I2C, SWD, 2×UART)
-
2×8-pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
-
8×3-pin through-holes for ESC/servo connections + extra serial ports + battery-voltage and buzzer pads.
-
-
Versatile mounting: compact size and symmetrical board layout make wiring tidy and stackable with OSD/power distribution boards.
-
Compatible with open-source firmware such as Cleanflight (and variants) with cross-platform GUI configuration (Windows/Mac/Linux).
Ideal Use Cases
-
FPV racing drones (quads/tables) where minimal weight and fast response are critical.
-
Acro/freestyle multirotors requiring tight PID tuning and responsive controls.
-
Drone hobbyists who want optional peripherals (OSD, telemetry, battery monitoring, LED) while maintaining compact form.
-
Builds where stack-style mounting (flight controller + OSD + PDB) is desired.
What to Note / Setup Tips
- As it is lightweight and designed for racing, vibration isolation is very important — balance props/motors, secure wiring, and if possible mount on soft foam or use vibration dampeners.
- Because of many I/O options and small size, plan your wiring layout carefully (ESC leads, receiver wiring, power distribution) to avoid interference or signal noise.
- Update to a compatible firmware version (Cleanflight or variant) and configure board properly (receiver type, ESC protocol, motor layout) to get optimal performance.
- Ensure proper power-feed (5 V regulated) and avoid feeding multiple BECs in parallel onto same 5 V rail.
- While the ACRO version covers most racing/acro needs, if you need altitude hold, barometer or compass for GPS-assisted flight you may want to consider the Deluxe version.
The SP Racing F3 ACRO Flight Controller offers top-tier hardware for acrobatic/racing drones in a lightweight, compact form. With the powerful STM32 F3 CPU, full support for modern ESC protocols, broad receiver compatibility and excellent I/O flexibility, it’s well suited for experienced builders seeking high performance and customisation. If your build focuses purely on acro/racing (without needing GPS/altitude hold) this is a strong choice.
Technical Specifications:
- Input Voltage: 5 V DC
- Micro-SD Card Slot: No
- Processor: STM32F303 CPU, 72Mhz inc FPU
- Firmware: Support KVteam, MWOSD firmware
- Sensors: MPU6050-Accelerometer/Gyro, MS5611 barometer, HMC5883 compas
- Advanced Gyro Technology: Unparalleled stability for precise flight maneuvers.
- Compact and Lightweight: Designed for portability without sacrificing power.
- Ultra-Responsive Controls: Lightning-fast command translation for agile flying.
- Versatile Compatibility: Seamless integration with various drone setups.
- Customizable Firmware: Tailor performance to your flying style with adjustable parameters.
- Durable Construction: Built to withstand high-speed flights and challenging conditions.

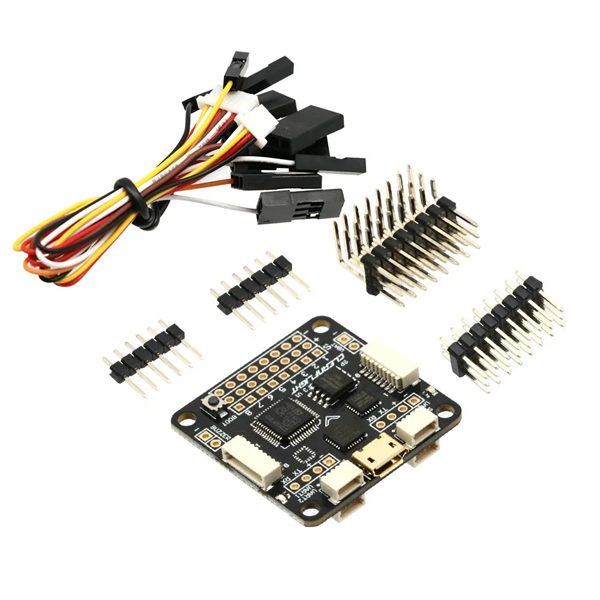

Package Includes:
- 1 Piece– SP Racing F3 ACRO Flight Controller
| Weight | 18 g |
|---|---|
| Dimensions | 36 × 36 × 5 mm |
