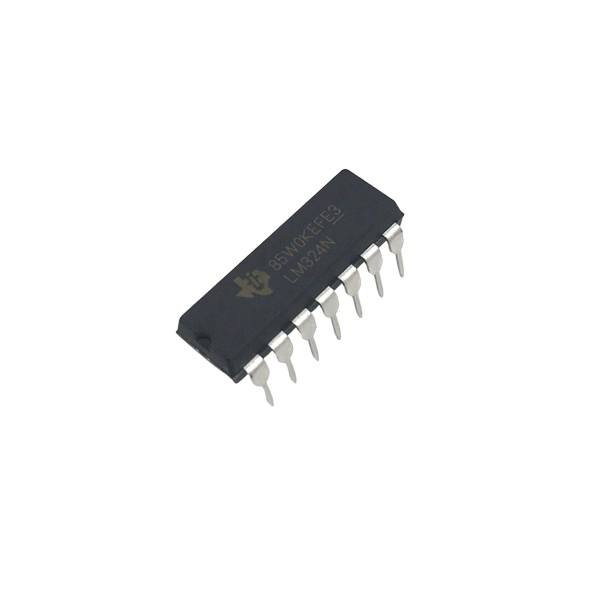

LM324 Low Power Quad Op-Amp IC DIP-14 Package
Original price was: ₹89.00.₹39.00Current price is: ₹39.00.
SKU : 33-ERICS011STOCK: (Oh! no) Out of stock
Quick Review:
- Supply Voltage: 32V
- Differential input voltage: 32V
- Input voltage: .3~32V
- Input Current (VIN < −0.3 V): 50 V
- Power Dissipation: 1130mW
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
Out of stock
The LM324 device consists of four independent, high-gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split-power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM324 device can directly operate off of the standard 5- V power supply voltage which is used in digital systems and easily provides the required interface electronics without requiring the additional ±15 V power supplies.
Technical Specifications:
- Supply Voltage: 32V
- Differential input voltage: 32V
- Input voltage: .3~32V
- Input Current (VIN < −0.3 V): 50 V
- Power Dissipation: 1130mW
- Output Short-Circuit to GNDV + ≤ 15 V and TA = 25°C: Continuous
- Storage temperature, Tstg: -65~12150°C
- Soldering Information: 260°C
- Internally Frequency Compensated for Unity Gain
- Large DC Voltage Gain 100 dB
- Wide Bandwidth (Unity Gain) 1 MHz (Temperature Compensated)
- Wide Power Supply Range: – Single Supply 3 V to 32 V – or Dual Supplies ±1.5 V to ±16 V
- Very Low Supply Current Drain (700 μA) —Essentially Independent of Supply Voltage
- Low Input Biasing Current 45 nA (Temperature Compensated)
- Low Input Offset Voltage 2 mV and Offset Current: 5 nA
- Input Common-Mode Voltage Range Includes Ground
- Differential Input Voltage Range Equal to the Power Supply Voltage
- Large Output Voltage Swing 0 V to V + − 1.5 V
Package Includes:
- 1 Piece- LM324 Low Power Quad Op-Amp IC DIP-14 Package
| Weight | 2 g |
|---|
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
