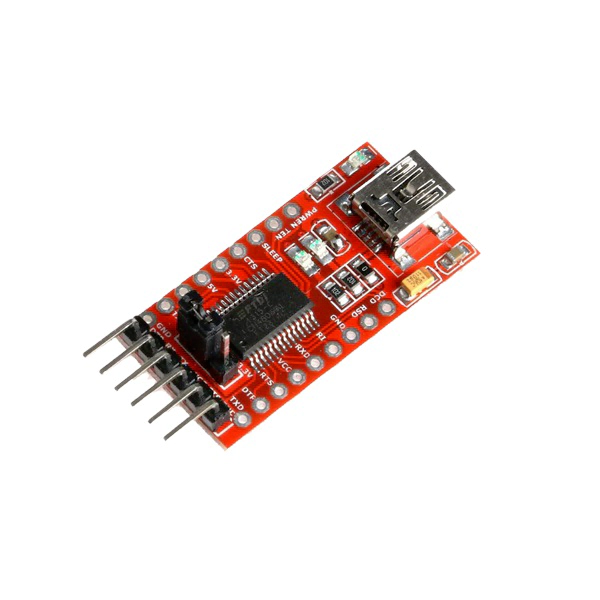

FT232RL USB to TTL Serial Adapter Module
Original price was: ₹149.00.₹139.00Current price is: ₹139.00.
SKU : 64-ERIFM004STOCK: 4 (WooHoo!) Available
Quick Review:
- Material: PCB + Electronic Component
- Support: 3.3V, 5V
- Main Color: Red
- Chipset: FT232RL
- USB power has over current protection, using 500MA self-restore fuse
- RXD/TXD transceiver communication indicator
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Bulk Quantity? Let’s Talk!
Availability:
4 in stock
4 in stock
1 in stock
6 in stock
The FT232RL module is a small USB to TTL converter and used with different Arduino boards. The TTL is used to program Arduino boards. This has Six pins where the pins are used to communicate with other microcontrollers. The TTL converter has Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
Features of FT232RL IC:-
- Single chip USB to asynchronous serial data transfer interface.
- Entire USB protocol handled on the chip. No USB specific firmware programming required.
- Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
- Fully integrated USB termination resistors.
- Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
- Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
- 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Technical Specifications:
- Material: PCB + Electronic Component
- Support: 3.3V, 5V
- Main Color: Red
- Chipset: FT232RL
- USB power has over current protection, using 500MA self-restore fuse
- RXD/TXD transceiver communication indicator
- Pin definition: DTR,RXD,TX,VCC,CTS,GND
- Pitch:2.54mm
- Module Size: About 36mm(length)*17.5mm(width)
- Interface : Mini USB
Package Includes:
- 1 Piece- FT232RL USB to TTL Serial Adapter Module
| Weight | 10 g |
|---|---|
| Dimensions | 29 × 32 × 15 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
