Fire Flame Detection Sensor Relay Module
Original price was: ₹199.00.₹149.00Current price is: ₹149.00.
SKU : 35-ERSRLY001STOCK: 5 (WooHoo!) Available
Quick Review:
- Operating Voltage: 3.3V to 5V DC
- Detection Range: 760nm to 1100nm IR wavelength
- Relay Output Voltage: Supports up to 250V AC or 30V DC
- Trigger Mode: Active low signal
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Bulk Quantity? Let’s Talk!
Availability:
5 in stock
5 in stock

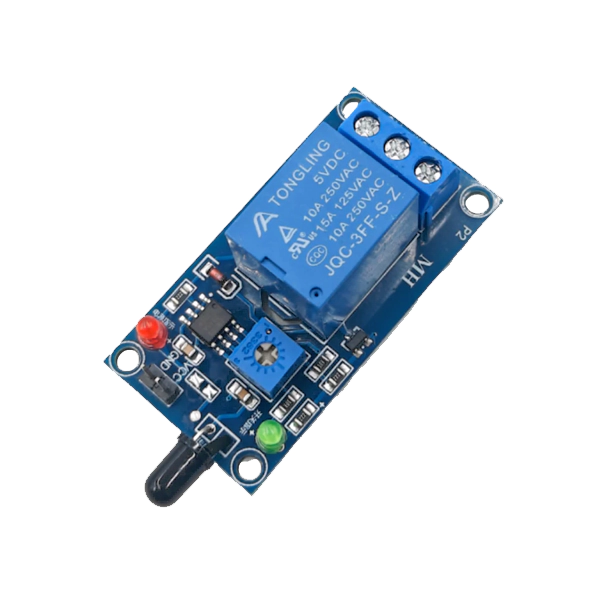

Fire Flame Detection Sensor Relay Module
It is a fire flame detection sensor relay Module. The flame sensor can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test.
The detection angle of 60 degrees, and the flame spectrum is particularly sensitive. Sensitivity adjustable (shown in blue digital potentiometer adjustment). The comparator output directly triggers the relay.
The output bluish Terminal Block for convenient connections.
Technical Features:
- Operating Voltage: 3.3V to 5V DC
- Detection Range: 760nm to 1100nm IR wavelength
- Relay Output Voltage: Supports up to 250V AC or 30V DC
- Trigger Mode: Active low signal
- Fire/Flame Detection: High sensitivity to infrared wavelengths between 760nm to 1100nm.
- Relay Integration: Built-in relay switch for triggering external devices when flames are detected.
- Adjustable Sensitivity: Onboard potentiometer allows fine-tuning of detection sensitivity.
- Wide Voltage Range: Operates efficiently between 3.3V and 5V.
- Indicator LEDs: Includes power and detection indicator LEDs for easy status monitoring.
- Durable Construction: Designed for reliable operation in industrial and domestic applications.
Package Includes:
- 1 Piece– Fire Flame Detection Sensor Relay Module
| Weight | 15 g |
|---|---|
| Dimensions | 50 × 30 × 17.09 mm |
| 85439000 | 85439000 |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
