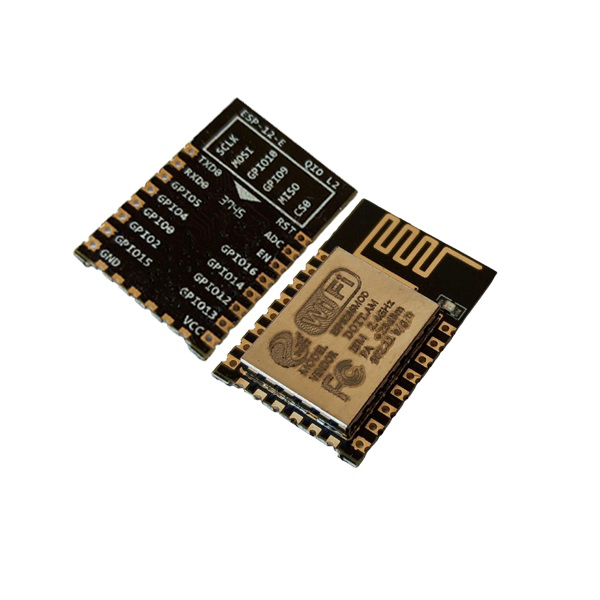

ESP-12E ESP8266 Wi-Fi Chip Module

ESP8266 ESP-12E Wi-Fi Module is based on the ESP8266EX microcontroller from ESPRESSIF. It is a must-have for any Wi-Fi based projects nowadays. Many of the Wi-Fi based IoT, and automation devices are using this module. This module has inbuilt Wi-Fi along with MCU, so does not need any external microcontroller, it can be used directly. It contains SoC with integrated TCP / IP protocol stack, and using it can give access to a Wi-Fi Network to any microcontroller. It can also host applications or otherwise offload the task of Wi-Fi Networking from any microcontroller.

This ESP-12E Wi-Fi module comes with AT Commands Firmware, thereby allowing us to get functionality just like Arduino Wi-Fi shield. The inbuilt firmware can also be replaced by uploading your own firmware, according to your needs, modules’ memory and processor. Apart from all this, this module is very cheap, and has huge and growing community worldwide. It removes the need of an external MCU based on the task at hand. And it has 7 GPIOs.

This ESP8266 ESP-12E Wi-Fi module has 80Mhz low power 32 Bit processor, in which custom firmware can be loaded. It can also host small web pages without any external controller. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions, and requires no external RF parts.

Difference between ESP8266 ESP-12E and ESP-12F Wi-Fi Module:

The ESP8266-12E is similar to ESP8266-12F is almost all terms, the only difference is the antenna on the ESP8266-12F has better performance than the antenna on ESP8266-12E. Otherwise, both of them use the same internal SoC chip and same flash. The ESP8266-12F module is RoHS Certified.

The ESP8266 12E is more widely accepted in the market than the ESP 12F.

NOTE: The module is only compatible with 3.3 V Logic Level and will not work directly with 5 V Logic devices.

Technical Features:

• Brand: DoIT
• 4 M Byte Internal flash size
• RoHS Certified
• Operating Voltage: 3.3 V
• Frequency range : 2.4 GHz – 2.5 GHz
• Operating Current: Average 80 mA
• WiFi 2.4 GHz, support WPA/WPA2 Security
• Network protocol : IPv4, TCP/UDP/HTTP/FTP
• 802.11 b/g/n
• WiFi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• Has Integrated TR Switch, balun, LNA, power amplifier and matching network
• Integrated PLLs, regulators, DCXO and power management units
• +19.5 dBm output power in 802.11b mode
• Power down leakage current of < 10 µA
• Integrated low power 32-bit CPU can be used as application processor
• SDIO 1.1 / 2.0, SPI, UART
• STBC, 1×1 MIMO, 2×1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4 ms guard interval
• Wake up and transmit packets in < 2 ms
• Standby power consumption of < 1.0 mW (DTIM3)
• Access Point and Station Modes
• Integrated 10 Bit ADC

Package Includes:

•  1 Piece- ESP-12E ESP8266 Wi-Fi Chip Module
