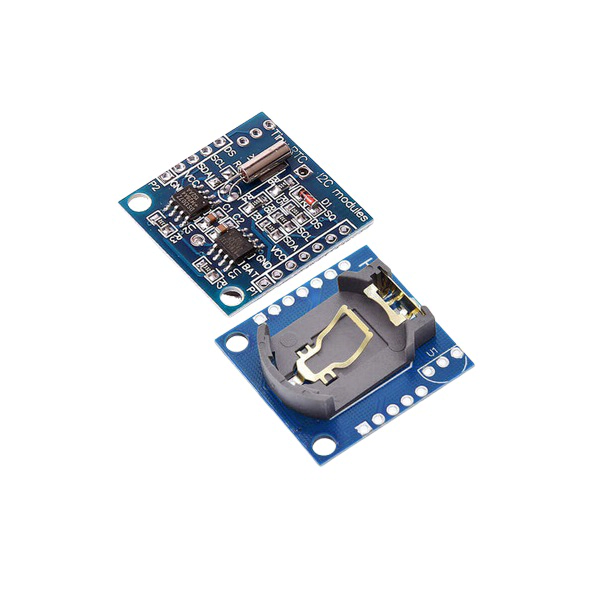

DS1307 Real Time Clock (RTC) Module
Original price was: ₹155.00.₹149.00Current price is: ₹149.00.
Quick Review:
- VCC: Power supply (typically 5V).
- GND: Ground.
- SCL: Serial Clock Line for I2C communication.
- SDA: Serial Data Line for I2C communication.
- SQW/OUT: Square wave output pin that can be used for outputting a programmable square wave.
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
1 in stock
1 in stock
1 in stock
The DS1307 serial real-time clock (RTC) is a low-power, full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. Address and data are transferred serially through an I²C, bidirectional bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The DS1307 has a built-in power-sense circuit that detects power failures and automatically switches to the backup supply. Timekeeping operation continues while the part operates from the backup supply. Key Features Completely Manages All Timekeeping Functions Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100 56-Byte, Battery-Backed, General-Purpose RAM with Unlimited Writes Programmable Square-Wave Output Signal Simple Serial Port Interfaces to Most Microcontrollers I2C Serial Interface Low Power Operation Extends Battery Backup Run Time Consumes Less than 500nA in Battery-Backup Mode with Oscillator Running Automatic Power-Fail Detect and Switch Circuitry 8-Pin DIP and 8-Pin SO Minimizes Required Space Optional Industrial Temperature Range: -40°C to +85°C Supports Operation in a Wide Range of Applications.
The DS1307 Real Time Clock (RTC) module is a widely used component in electronics and embedded systems for keeping accurate time. Here are some key features and details about the DS1307 RTC module:
Key Features:
- Real-Time Clock (RTC): Keeps track of the time in hours, minutes, and seconds, along with the date, month, and year with leap year compensation.
- I2C Interface: Communicates with microcontrollers via the I2C bus.
- Battery Backup: This can maintain accurate timekeeping even when the main power supply is interrupted, thanks to a backup battery (typically a CR2032 coin cell).
- Low Power Consumption: Consumes minimal power, making it suitable for battery-operated devices.
- Clock Oscillator: Uses an external 32.768 kHz crystal oscillator.
Pin Configuration:
- VCC: Power supply (typically 5V).
- GND: Ground.
- SCL: Serial Clock Line for I2C communication.
- SDA: Serial Data Line for I2C communication.
- SQW/OUT: Square wave output pin that can be used for outputting a programmable square wave.
Basic Operation:
- Connecting to a Microcontroller: The DS1307 RTC module is connected to the microcontroller via the I2C bus (SCL and SDA lines). The microcontroller can then read from and write to the RTC to get the current time or set a new time.
- Setting the Time: To set the time, the microcontroller sends the desired time data over the I2C bus to the DS1307.
- Reading the Time: To read the current time, the microcontroller requests time data from the DS1307 over the I2C bus.
Common Applications:
- Clocks and Watches: Provides accurate timekeeping for digital clocks and watches.
- Data Loggers: Timestamping data entries in data logging applications.
- Alarm Systems: Scheduling tasks or triggering events at specific times.
- Home Automation: Time-based control of appliances and systems in smart homes.
Technical Specifications:
- DS1307 I2C RTC DS1307 24C32 Real Time Clock Module
- Provide clock signal for a microcontroller. Cascade other I2C devices
- With reading and writing function. Using time: About 1 year (Fully charged)
- Memory storage: 24C32 32K I2C EEPROM. With LIR2032 rechargeable lithium battery and rechargeable circuit
- With full BCD clock calendar chip of 56 byte non-volatile RAM. Address and data transmission via serial cable with dual-line dual-direction. The chip can provide second, minute, hour etc information.. AM/PM mark, for working 24-hour or 12-hour
Package Includes:
- 1 Piece-DS1307 Real Time Clock (RTC) Module
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
Related products
-

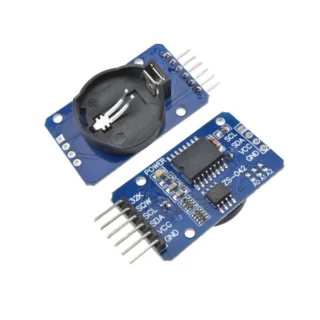

DS3231 Real Time Clock (RTC) Module
