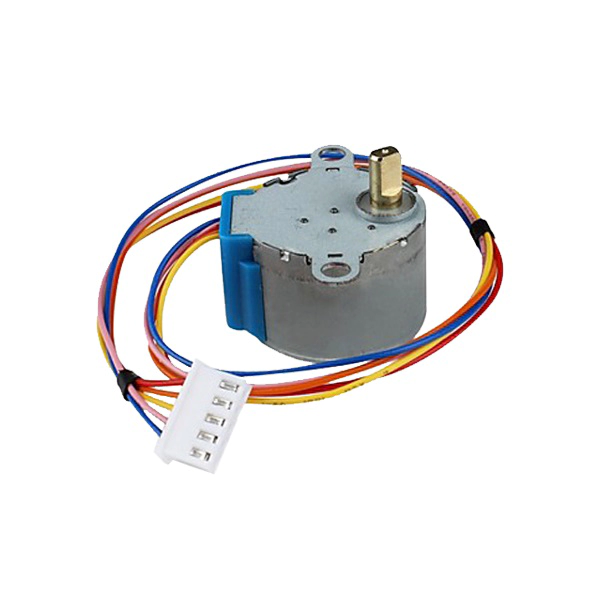

5V DC Stepper Motor Mini (28BYJ-48)
Original price was: ₹175.00.₹155.00Current price is: ₹155.00.
Quick Review:
- Rated voltage supply: +5V
- No of phase: 4
- Stride angle: 5.625°/64
- Speed variation ratio: 1/64
- Pull-in torque: 300 gf.cm
- Friction torque: 600-1200 gf.cm
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Quantity? Let’s Talk!
Availability:
15 in stock
15 in stock
1 in stock
28BYJ-48 is the most commonly used stepper motor because of its compact size, 5V power supply (that can be provided by any controller), and a high level of control. It has a stride angle of 5.625°/64, hence it will make 64 steps to complete one rotation (as every step covers 5.625) so it has a high level of control. This stepper motor has 4 coils unipolar arrangement (as it is 4 phase motor) and each coil is rated for +5V power supply so it can be controlled easily controlled by any microcontroller.
28BYJ-48 stepper motors consume high current so motor driver like ULN2003 Motor driver module is mandatory to drive this motor. It consumes +5V so can not give high torque, for high torque prefer NEMA17.
Technical Specifications:
- Rated voltage supply: +5V
- No of phase: 4
- Stride angle: 5.625°/64
- Speed variation ratio: 1/64
- Pull-in torque: 300 gf.cm
- Friction torque: 600-1200 gf.cm
- Self-positioning torque: >34.3mN.m
- In-traction torque: >34.3mN.m (120Hz)
- DC resistance: 50Ω±7% (25°C)
- Insulated resistance: >10MΩ (500V)
- Insulated power: 600VAC/1mA/1s
- Frequency: 100Hz
- Idle in-traction frequency: >600Hz
- Idle out-traction frequency: >1000Hz
- Insulation grade: A
Package Includes:
- 1 Piece– 5V DC Stepper Motor Mini (28BYJ-48)
