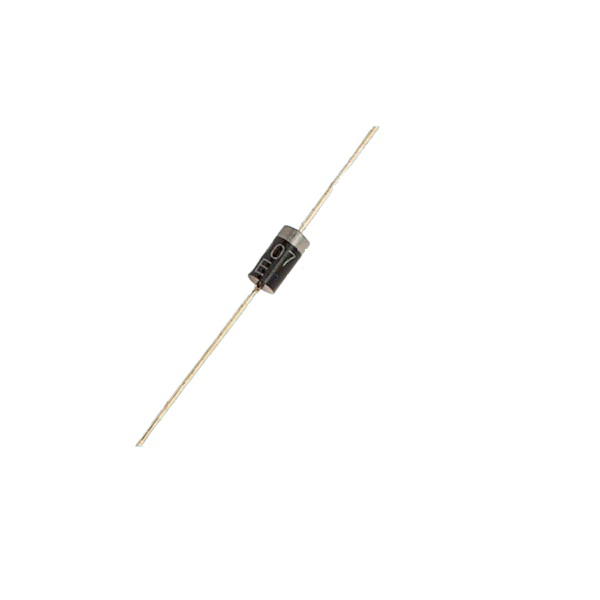

1N4007 Diode- 1Pcs
Original price was: ₹8.00.₹1.00Current price is: ₹1.00.
Quick Review:
- Average forward current is 1A
- Non-repetitive Peak current is 30A
- Reverse current is 5uA.
- Peak repetitive Reverse voltage is 1000V
- Power dissipation 3W
- Available in DO-41 Package
- High Surge Current Capability
- Low Forward Voltage Drop
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Bulk Quantity? Let’s Talk!
Availability:
193 in stock
193 in stock
2 in stock
370 in stock
257 in stock
The IN4007 diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. For 1N4007 Diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. The power dissipation of this diode is 3W.
Technical Specifications:
- Average forward current is 1A
- Non-repetitive Peak current is 30A
- Reverse current is 5uA.
- Peak repetitive Reverse voltage is 1000V
- Power dissipation 3W
- Available in DO-41 Package
- High Surge Current Capability
- Low Forward Voltage Drop
- Diffused Junction
- Surge Overload Rating to 30A Peak
- Low Reverse Leakage Current
- Low leakage current
- Solder dip 275 °C max. 10 s, per JESD 22-B106
- Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Mechanical Data:-
- Case: DO-41
- Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020D
- Terminals: Finish – Bright Tin. Plated Leads Solderable per MIL-STD-202, Method 208
- Polarity: Cathode Band
- Marking: Type Number
- Weight: 0.30 grams (Approximate)
Application:-
- Can be used to prevent reverse polarity problem
- Half Wave and Full Wave rectifiers
- Used as a protection device
- Current flow regulators
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 1000 | V |
| IF(AV) | Average Rectified Forward Current | 1 | A |
| I2t | Rating for fusing | 30 | A |
| IFSM | Non- Repetitive Peak Forward Surge Current | 3.7 | A2sec |
| TJ | Operating Junction Temperature | 55 to +175 | ℃ |
| Tstg | Storage Temperature Range | 55 to +175 | ℃ |
Package Includes:
- 1 Piece-1N4007 Diode- 5Pcs
| Weight | 16 g |
|---|---|
| Dimensions | 49 × 20 × 21.2 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
