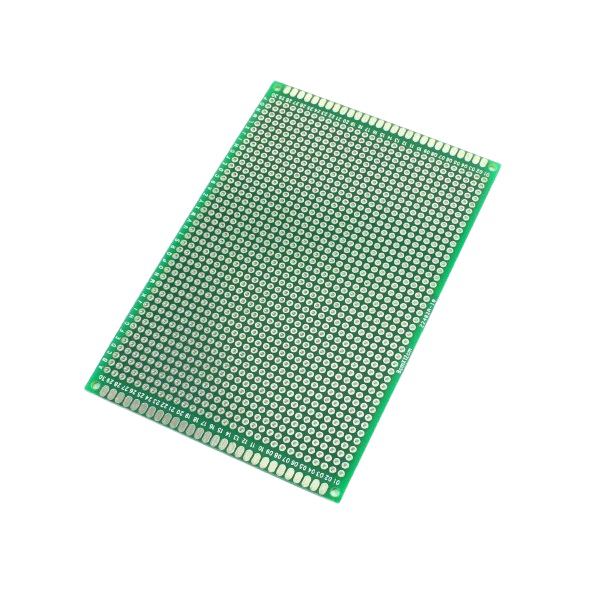

12×18 CM Double Sided Universal PCB Prototype Board 2.54mm Hole Pitch
Original price was: ₹230.00.₹190.00Current price is: ₹190.00.
Quick Review:
- Layer: Dual Sided
- Length: 3 Inch
- Width: 2 Inch
- Thickness: 1.5 mm
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Bulk Quantity? Let’s Talk!
Availability:
Out of stock
This versatile double-layer PCB prototype board is designed to meet the diverse needs of electronics enthusiasts, hobbyists, and professionals. With a compact size of 12×18 centimeters and a thoughtful double-sided layout, this board offers flexibility and functionality for a wide range of electronic projects.
Key Features of Double Layer PCB :
Double-Sided Design: The double-sided layout provides ample space for complex circuit designs. Copper traces on both the top and bottom layers allow for efficient routing and connectivity, making it suitable for projects with diverse component requirements.
2.54mm Hole Pitch: The standardized 2.54mm (0.1-inch) hole pitch ensures compatibility with commonly used electronic components and connectors. This feature facilitates easy integration and allows for quick prototyping without the need for specialized connectors.
Compact Dimensions: Measuring 12×18 centimeters, this PCB prototype board strikes a balance between compactness and versatility. It is well-suited for applications where space is limited while still providing enough room for a variety of components.
High-Quality Construction: Crafted from high-grade FR-4 fiberglass material, the board ensures durability and reliability. The material’s excellent electrical insulation properties and resistance to environmental factors contribute to the board’s longevity.
Standard Mounting Holes: A grid of standard-sized mounting holes simplifies the assembly process, allowing for easy and secure placement of components. These mounting holes adhere to widely accepted standards, ensuring compatibility with various accessories.
Clearly Labeled Pads: Each pad on both sides of the PCB is clearly labeled with reference markers and coordinates. This feature aids in precise component placement and simplifies the process of designing and assembling circuits, catering to users of all experience levels.
Solder Mask on Both Sides:
The application of a solder mask on Double PCB enhances the board’s appearance and protects against short circuits. This feature not only adds a professional touch but also aids in the soldering process, preventing unintended connections.
Technical Specifications:
- Layer: Dual Sided
- Length: 18 cm
- Width: 12 cm
- Thickness: ~1.6 mm
- Hole Pitch: ~2.54 mm
- Hole Diameter:~ 1 mm
Package Includes:
- 1 Piece– 12x18cm Double Sided Universal PCB Prototype Board 2.54mm Hole Pitch
| Weight | 11 g |
|---|---|
| Dimensions | 70 × 48 × 1.5 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
Other Info
- Country of origin: China
- Packer/ Importer: Ercoms Robotics Lab
