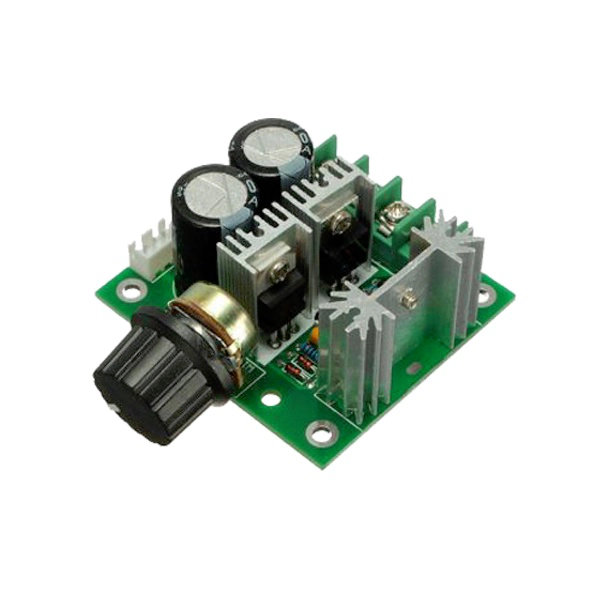

12V-40V10A DC Motor PWM Speed Control Switch Governor
Original price was: ₹380.00.₹199.00Current price is: ₹199.00.
Quick Review:
- Working Voltage: DC 12V DC 40V.
- Control Power: 0.01 400W.
- Static Current: 0.02 A ( Standby ).
- PWM Duty Cycle: 10% -100%.
- Input supply voltage: DC 12V-40V
- The maximum output power: 400W
- The maximum continuous output current: 8A
- Static Current: 0.02 A ( Standby )
- PWM frequency:13kHz
- Material: Plastic, metal
Shipping: Usually delivered in 3-7 days.
Brand New || Best Quality || Skype and Video Support Available.
Need in Bulk Quantity? Let’s Talk!
Availability:
10 in stock
10 in stock
The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.
Note:
This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.
Technical Specifications:
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
- Working Voltage: DC 12V DC 40V.
- Control Power : 0.01 400W.
- Static Current: 0.02 A ( Standby ).
- PWM Duty Cycle: 10% -100%.
- Input supply voltage: DC 12V-40V
- The maximum output power: 400W
- The maximum continuous output current: 8A
- Static Current: 0.02 A ( Standby )
- PWM frequency:13kHz
- Material: Plastic, metal
- Duty Cycle adjustable: 10%-100%
- The operation environment temperature: 20-40
Package Includes:
- 1 Piece–12V-40V10A DC Motor PWM Speed Control Switch Governor
| Weight | 20 g |
|---|---|
| Dimensions | 30 × 26 × 34 mm |
Shipping
We strive to ensure that your orders reach every corner of India efficiently and reliably. To achieve this, we partner with some of the most trusted courier services in the country, including E-Kart, Amazon Surface, Delhivery, DTDC, Blue Dart, XpressBees, Ecom Express, and India Speed Post—especially for rural areas, based on the most suitable courier partner for each customer’s location.
For interior or remote regions not serviced by private couriers, we rely on India Post to ensure complete coverage.
We make every effort to dispatch orders on the same day they are placed or within 24 hours of receiving the order. Orders placed before 1 PM (IST) are typically shipped the same day, while those placed after 1 PM are scheduled for shipment the next working day.
This level of commitment applies throughout the week, including weekdays, and often extends to weekends and public holidays to serve our customers better.
We also offer local self-pickup options for customers in nearby areas—available on weekdays and partially available on weekends.
Warranty
This item is covered by a 7-day limited warranty from the date of delivery, applicable only to manufacturing defects. This warranty is provided solely to protect customers against any such defects. In the unlikely event of an issue, replacement or reimbursement will be offered after a complete inspection and confirmation of the defect.
What voids the warranty?
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Note: For your peace of mind, all electronic items are imported and, as such, do not come with a manufacturer’s warranty or guarantee. However, we take great care to ensure product quality—each item is thoroughly inspected before dispatch.
